Explora el catálogo de productos de Craic Technologies

Petróleo, Geotecnia, Microespectrometría, Nanotecnología y Forense

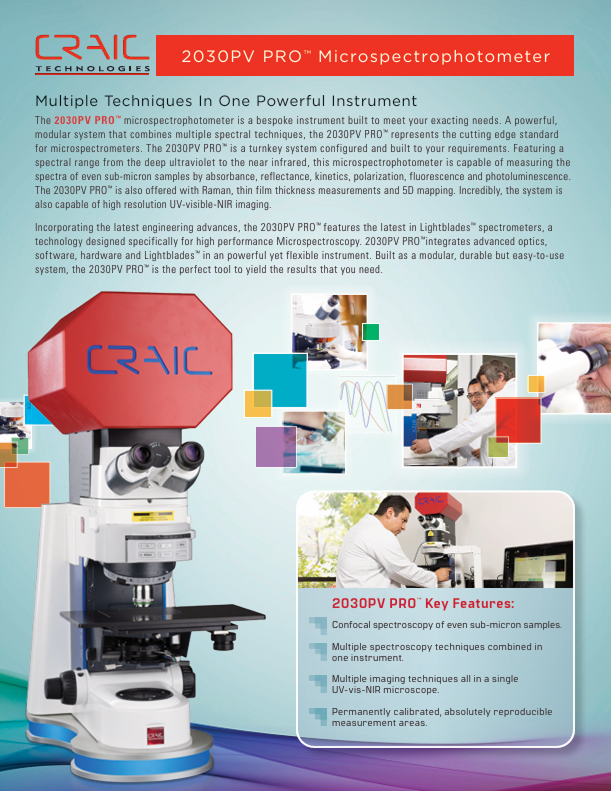

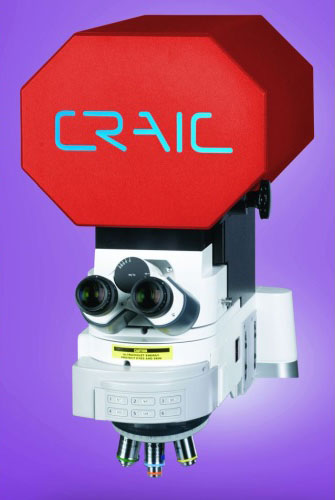

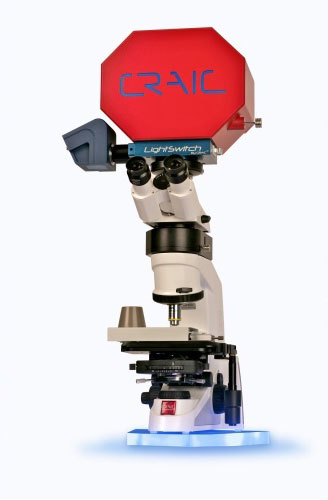

20/30 PV™ Microspectrophotometer

The innovative 20/30 PV™ microspectrophotometer is the latest and most powerful instrument from CRAIC Technologies. Built to meet your requirements, this bespoke instrument incorporates the latest technological advances in optics, spectroscopy and software to deliver the superior performance with unparalleled speed and capabilities. The ease-of-use for which CRAIC instruments are known has even been improved, making this instrument the cutting edge of UV-visible-NIR microspectroscopy.

The 20/30 PV™ microspectrophotometer combines the latest technologies to allow the user to measure UV-visible-NIR range transmission, absorbance, reflectance, emission and fluorescence spectra of sample areas smaller than a micron across. Even the thickness of thin films and color spaces may be determined. And while microspectra™ are being acquired, the sample may be viewed with high-resolution digital imaging in the deep UV, in color or in the near infrared. Ease of use features also add to the power of the 20/30 PV™ system and include everything from improvements in the instruments ergonomics to software to automation.

The 20/30 PV™ microspectrophotometer is simple to use, the measurements are non-destructive and the spectral data is unmatched.

Features

The 20/30 PV™: superior UV-visible-NIR spectra and images of microscopic samples.


  • Spectral Range: 200 to 2500 nm

  • UV-visible-NIR transmission microspectroscopy

  • UV-visible-NIR transmission imaging

  • UV-visible-NIR reflectance microspectroscopy

  • UV-visible-NIR reflectance imaging

  • UV-visible-NIR fluorescence microspectroscopy

  • UV-visible-NIR fluorescence micro-imaging

  • Raman microspectroscopy

  • Polarization microspectroscopy in the UV, visible and NIR regions

  • Polarization microscale imaging in the UV, visible and NIR regions

  • Thin film thickness measurements

  • Colorimetry of microscopic samples

  • Refractive index measurements with the rIQ™ package

  • Manual or fully automated operation

  • Featuring Lightblades™ technology

  • Integrated TE cooled array detectors available for low noise and long term stability

  • Precision temperature control of samples

  • Calibrated, variable measurement areas even smaller than a micron

  • Superior images both with eyepieces and digital imaging

  • Featured with Lambdafire™ spectroscopy and imaging control and analysis software. Lambdafire™ also includes touchscreen control

  • Specialized software modules including statistical analysis, spectra mapping, spectral databasing, image analysis and more

  • Easy to use and maintain

  • From the experts in microspectroscopy

UV-vis-NIR Microspectroscopy

Cutting edge microspectroscopy from the leaders

A fully integrated microspectroscopy unit that features a spectral range from the deep UV through the visible and into the near infrared. Simultaneous and direct imaging of both the sampling aperture and the sample makes for fast, accurate measurements. Featuring Lightblades™ technology, the 20/30 PV™ gives you the ability to measure transmission, reflectance, polarization and fluorescence spectra of even sub-micron samples.

CRAIC Technologies is also the only recognized source for NIST traceable microspectrometer standards.

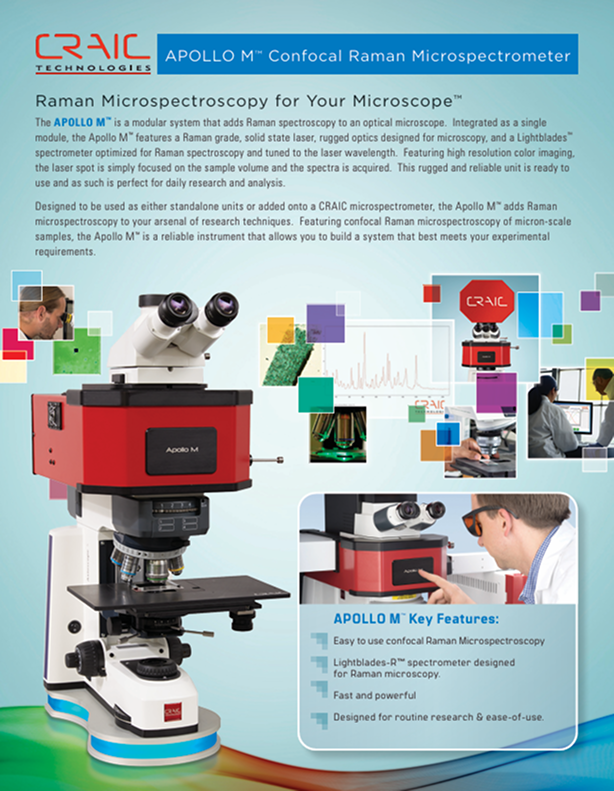

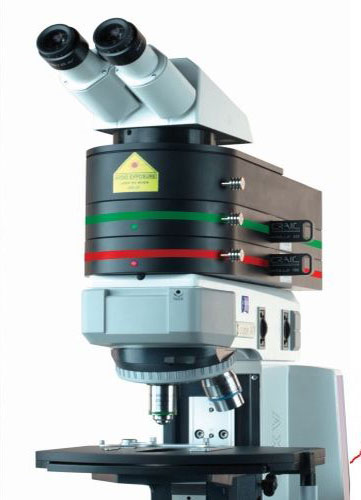

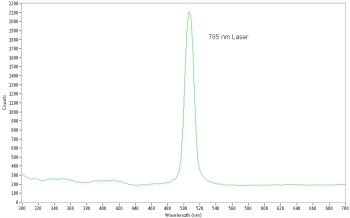

Raman Microspectroscopy

Flexible Raman Microspectroscopy

When fitted with the CRAIC Apollo™ Raman spectrometer module, the 20/30 PV™ is capable of Raman, resonance Raman and other types of measurements of microscopic samples. Modules include lasers, Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your samples.

Fluorescence

High sensitivity emission microspectroscopy & imaging

The 20/30 PV™ can be configured for fluorescence and luminescence spectra and images of microscopic samples. Featuring Lightblades™ technology and with excitation ranging from the deep UV to the near infrared and the ability to measure the emission in the same range, the 20/30 PV™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more.

Polarization

Microspectroscopy & imaging of UV-visible-NIR polarization

20/30 PV™ can be configured to acquire the polarization spectra and images of even the smallest samples. Featuring Lightblades™ technology and with a spectral range from the UV to the NIR, the 20/30 PV™ polarization microspectroscopy capabilities are unparalleled. The spectra and images of birefringent and other types of samples with polarization characteristics can be acquired quickly and easily with this sophisticated system.

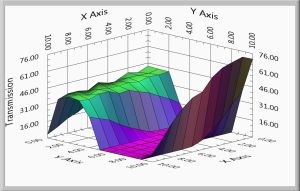

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the absorbance, transmission, reflectance, fluorescence, emission and Raman spectra of samples may be generated.

UV-vis-NIR Microimaging

Superior image quality from the UV to the NIR

The 20/30 PV™ includes a unique UV-visible-NIR microscope with research grade optics. Featuring high resolution digital imaging for color, UV and the NIR regions, the 20/30 PV™ has sophisticated imaging software. This gives you the ability for both real time and image capture of samples by transmission, reflectance, polarization and fluorescence microscopy quickly and easily.

Applications

  • Semiconductor Film Thickness

  • MEMS devices

  • Surface Plasmon Resonance

  • PhotonicBandgap Crystals

  • Process Impurity Detection

  • Protein Crystals

  • Forensic Science

  • Drug Chemistry

  • Questioned Documents

  • OLED's

  • Flat Panel Color Masks

  • Combinatorial Chemistry

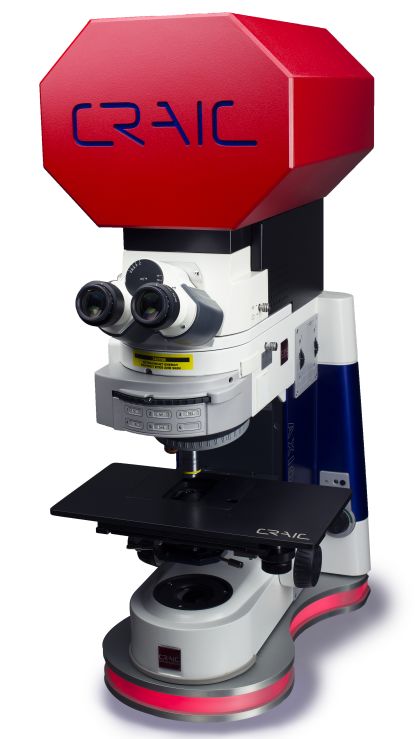

20/30 XL™ Microspectra™ of Large Samples

The innovative 20/30 XL™ microspectrophotometer is designed to allow you to acquire spectra, images, and film thickness measurements of microscopic features of large scale samples. "XL" stands for "extra large" and these are the types of samples for which this instrument was built. Built to meet your needs, the bespoke 20/30 XL™ incorporates the latest technological advances in optics, spectroscopy and software to deliver the superior performance with unparalleled speed and capabilities. The ease-of-use for which CRAIC instruments are known has even been improved, making this instrument the cutting edge of UV-visible-NIR microspectroscopy.

The 20/30 XL™ microspectrophotometer allows you to measure UV-visible-NIR range transmission, absorbance, reflectance, emission and fluorescence spectra of features smaller than a micron across. Yet, depending upon the instrument configuration, the size of the sample can essentially be unlimited. Now you can map color varations within pixels of the biggest flat panel displays, measure film thickness of 300 mm wafers with ease or measure the fluorescence of the largest artworks.

Raman microspectroscopy, high resolution UV microscopy and even NIR microscopy are also offered.

The 20/30 XL™ microspectrophotometer is simple to use, the measurements are non-destructive and the spectral data is unmatched.

Features

Custom built microspot UV-vis-NIR and Raman spectroscopy of large samples

  • Microspot analysis of very large scale samples

  • Spectral Range: 200 to 2100 nm

  • UV-visible-NIR transmission microspectroscopy

  • UV-visible-NIR transmission imaging

  • UV-visible-NIR reflectance microspectroscopy

  • UV-visible-NIR reflectance imaging

  • UV-visible-NIR fluorescence microspectroscopy

  • UV-visible-NIR fluorescence micro-imaging

  • Raman microspectroscopy

  • Polarization microspectroscopy in the UV, visible and NIR regions.

  • Polarization microscale imaging in the UV, visible and NIR regions

  • Thin film thickness measurements

  • Colorimetry of microscopic samples.

  • Refractive index measurements with the rIQ™ package.

  • Featuring Lightblades™ technology

  • Manual or fully automated operation

  • Integrated TE cooled array detectors for low noise and long term stability

  • Precision temperature control of samples

  • Calibrated, variable measurement areas even smaller than a micron

  • Superior images both with eyepieces and digital imaging

  • Featured with Lambdafire™ spectroscopy and imaging control and analysis software. Lambdafire™ also includes touchscreen control.

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

  • Easy to use and maintain

  • From the experts in microspectroscopy

UV-vis-NIR Microspectroscopy

Cutting edge microspectroscopy from the leaders

A fully integrated microspectroscopy unit that features a spectral range from the deep UV through the visible and into the near infrared. Simultaneous and direct imaging of both the sampling aperture and the sample makes for fast, accurate measurements. Featuring Lightblades™ technology, the 20/30 XL™ gives you the ability to measure transmission, reflectance, polarization and fluorescence spectra of even sub-micron samples.

CRAIC Technologies is also the only recognized source for NIST traceable microspectrometer standards.

Raman Microspectroscopy

Flexible Raman Microspectroscopy

When fitted with the CRAIC Apollo™ Raman spectrometer module, the 20/30 XL™ is capable of Raman, resonance Raman and other types of measurements of microscopic samples. Modules include lasers, Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your samples.

Fluorescence

High sensitivity emission microspectroscopy & imaging

The 20/30 XL™ can be configured for fluorescence and luminescence spectra and images of microscopic samples. Featuring Lightblades™ technology and with excitation ranging from the deep UV to the near infrared and the ability to measure the emission in the same range, the 20/30 XL™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more.

Polarization

Microspectroscopy & imaging of UV-visible-NIR polarization

20/30 XL™ can be configured to acquire the polarization spectra and images of even the smallest samples. Featuring Lightblades™ technology and with a spectral range from the UV to the NIR, the 20/30 XL™ polarization microspectroscopy capabilities are unparalleled. The spectra and images of birefringent and other types of samples with polarization characteristics can be acquired quickly and easily with this sophisticated system.

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the absorbance, transmission, reflectance, fluorescence, emission and Raman spectra of samples may be generated.

UV-vis-NIR Microimaging

Superior image quality from the UV to the NIR

The 20/30 XL™ includes a unique UV-visible-NIR microscope with research grade optics. Featuring high resolution digital imaging for color, UV and the NIR regions, the 20/30 XL™ has sophisticated imaging software. This gives you the ability for both real time and image capture of samples by transmission, reflectance, polarization and fluorescence microscopy quickly and easily.

Applications

  • Semiconductor Film Thickness

  • MEMS devices

  • Colorimetry of flat panel displays

  • Intensity mapping of flat panel displays

  • Spectra of Questioned Documents

  • or any other large scale samples...

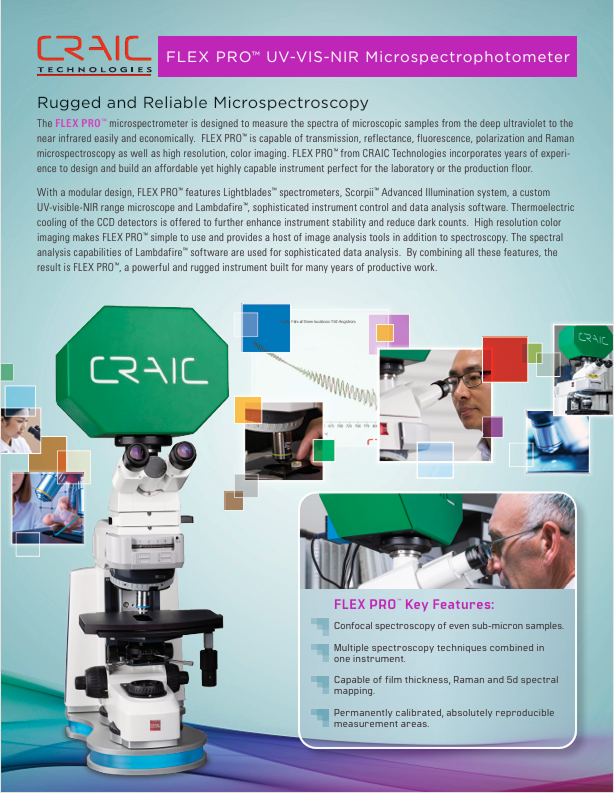

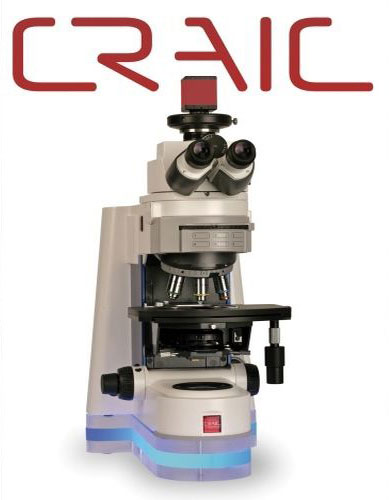

FLEX™ Microspectrophotometer

FLEX™ from CRAIC is a full-featured yet flexibly configured instrument that incorporates UV-visible-NIR optics, spectrophotometers digital imaging, and software...all tied together with our Lightswitch by CRAIC™ optical multiplexer. With our Lightswitch by CRAIC™ technology, FLEX™ retains the ease-of-use for which CRAIC instruments are known, while being capable of everything from UV-visible-NIR microspectroscopy, high resolution microscopic imaging, refractive index measurements and more.

With an attractive price-entry point, the FLEX™ microspectrophotometer utilizes tested technologies to allow you to measure UV-visible-NIR range transmission, absorbance, reflectance, emission and fluorescence spectra of microscopic sample areas. And while microspectra™ are being acquired, the sample may be simultaneously imaged with a high-resolution color digital imaging system or through eyepieces. Additional features may also include measuring the refractive index of microscopic samples as well as microcolorimetry and microspot thin film thickness measurements.

The FLEX™ microspectrophotometer is built to yield superior quality images and spectra for an attractive price.

Features

A cost effective solution for UV-Visible-NIR microspectroscopy and microscopic imaging.

  • UV-visible-NIR microspectroscopy

  • UV-visible-NIR imaging

  • Transmission, reflectance, polarization and fluorescence microspectroscopy

  • Transmission, reflectance, polarization and fluorescence microimaging

  • Raman microspectroscopy

  • Thin film thickness measurements

  • Colorimetry of microscopic samples.

  • Refractive index measurements with the rIQ™ package.

  • Featuring Lightblades™ technology

  • Integrated TE cooled array detectors available for low noise and long term stability

  • Calibrated, variable measurement areas smaller than a micron available

  • Superior images both with eyepieces and digital imaging

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

  • Easy to use and maintain

  • From the experts in microspectroscopy

UV-vis-NIR Microspectroscopy

Cost effective microspectroscopy

Microspectroscopy that features a spectral range from the UV through the visible and into the near infrared. Simultaneous and direct imaging of both the sampling aperture and the sample makes for fast, accurate measurements. Featuring Lightblades™ technology, the FLEX™ gives you the ability to measure transmission, reflectance and fluorescence spectra of even sub-micron samples.

CRAIC Technologies is also the only recognized source for NIST traceable microspectrometer standards.

Raman Microspectroscopy

Flexible Raman Microspectroscopy

When fitted with the CRAIC Apollo™ Raman spectrometer module, the FLEX™ is capable of Raman, resonance Raman and other types of measurements of microscopic samples. Modules include lasers, Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your samples.

Fluorescence

High sensitivity microfluorometry & imaging

The FLEX™ can be configured for fluorescence and luminescence spectra and images of microscopic samples. Featuring Lightblades™ technology and with excitation ranging from the deep UV to the near infrared and the ability to measure the emission in the same range, the FLEX™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more.

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the absorbance, transmission, reflectance, fluorescence, emission and Raman spectra of samples may be generated.

UV-vis-NIR Microimaging

Superior image quality from the UV to the NIR

The FLEX™ includes a UV-visible-NIR microscope featuring high resolution digital imaging for color, UV and the NIR regions. With its sophisticated imaging software, FLEX™ gives you the ability for both real time and image capture of samples by transmission, reflectance, polarization and fluorescence.

Applications

  • Trace Evidence

  • Forensic Drug Chemistry

  • Questioned Documents

  • OLED's

  • Flat Panel Color Masks

  • Semiconductor Film Thickness

  • MEMS devices

  • Surface Plasmon Resonance

  • PhotonicBandgap Crystals

  • Process Impurity Detection

  • Protein Crystals

  • Combinatorial Chemistry

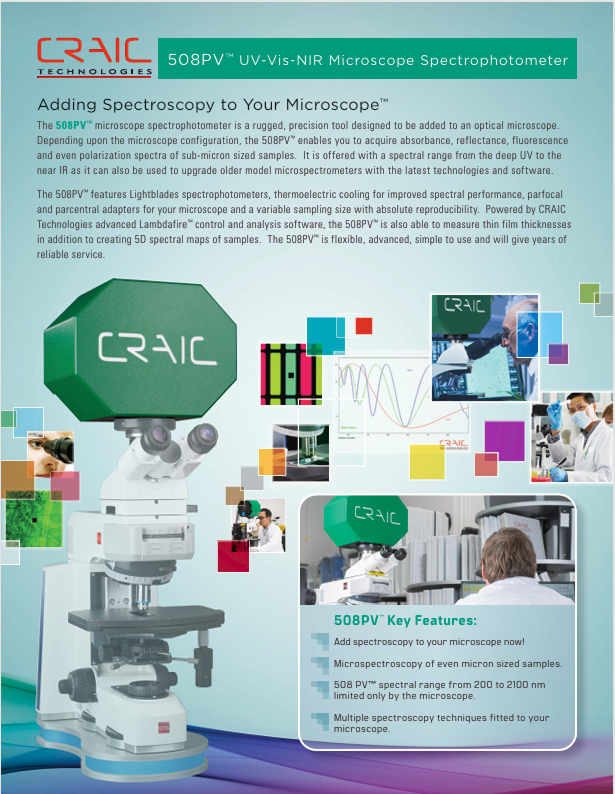

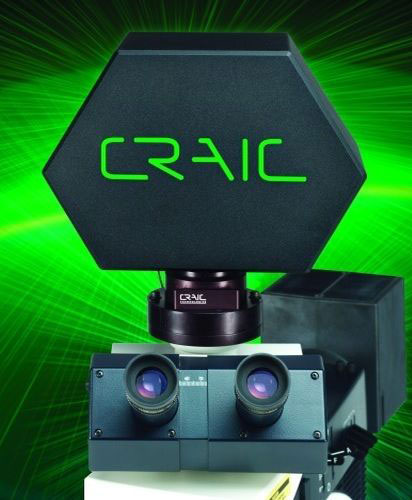

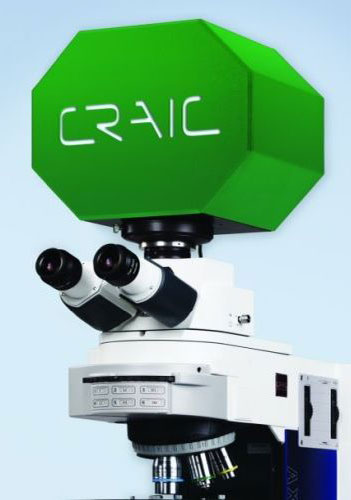

508 PV™ Microscope Spectrophotometer

The 508 PV™ microscope spectrophotometer is designed to add spectroscopy, color imaging, thin film thickness measurement and colorimetry capabilities to your optical microscope or probe station. It can also be used to upgrade an older microspectrometer with cutting edge optics, electronics and software.

The 508 PV™ attaches to an open photoport and enables you to collect transmission, reflectance, polarization or even fluorescence and luminescence spectra of microscopic samples. Featuring Lightblades™ spectrophotometer technology from CRAIC, the 508 PV™ spectrophotometer has a usable spectral range from the ultraviolet to the near infrared. With the 508 PV™, you can acquire high quality spectra of even sub-micron samples rapidly, non-destructively and with ease.

The 508 PV™ microscope spectrophotometer is ideal for diverse applications such as colorimetry of pixels on flat panel displays, reflectometry of vitrinite coal and source rock, or thin film thickness measurements of optics and semiconductors. The 508 PV™is also a cost effective way to upgrade older microspectrometers to the latest hardware and software.

Features

Add the 508 PV™ to any microscope or probe station for spectroscopy, colorimetry and micro spot film thickness.

  • Featuring Lightblades™ spectrophotometers designed specifically for microspectroscopy

  • User selected spectral range from deep UV to NIR

  • 250 to 2100 nm available spectral range

  • Permanently calibrated, variable measurement areas even below a micron

  • Thermoelectric cooling available to improve signal-to-noise ratios and long term stability.

  • Incorporates high resolution, color digital imaging...up to 6 megapixels available

  • Featured with Lambdafire™ spectroscopy and imaging control and analysis software. Lambdafire™ also includes touchscreen control.

  • Calibrated, variable measurement areas even smaller than a micron

  • Transmission microspectroscopy

  • Reflectance microspectroscopy

  • Fluorescence microspectroscopy

  • Polarization microspectroscopy

  • Thin film thickness measurements

  • Colorimetry of microscopic samples

  • Refractive index measurements with the rIQ™ package

  • Manual or fully automated operation

  • Precision temperature control of samples

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

  • NIST traceable microspectrometer standards

  • Easy to use and maintain

  • From the experts in microspectroscopy

UV-vis-NIR Microspectroscopy

Adding spectroscopy to your microscope™

The 508 PV™ is a spectrophotometer, incorporating an imaging system, designed to add to any microscope or probe station with a photoport. Configurable for work ranging from the deep UV through the visible and into the near infrared, this powerful tool gives your systems new capabilities including film thickness measurements and colorimetry. Featuring Lightblades™ technology, the 508 PV™ also allows you the ability to measure transmission, reflectance, polarization and fluorescence spectra of even sub-micron samples.

Fluorescence

Cutting edge microfluorometry

The 508 PV™ can be configured for fluorescence and luminescence spectroscopy of even sub-micron samples. Featuring Lightblades™ technology and with the ability to measure the fluorescence and luminescence from the UV to the NIR, the 508 PV™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more.

Polarization

Polarization Microspectroscopy

The 508 PV™ can be configured to acquire the polarization spectra of microscopic samples. Featuring Lightblades™ technology, the 508 PV™ polarization microspectroscopy capabilities allow you to acquire spectra of birefringent and other types of samples quickly and easily.

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the absorbance, transmission, reflectance, fluorescence, emission and Raman spectra of samples may be generated.

Imaging and Microscopy

High resolution color digital imaging

The 508 PV™ features high resolution, color digital imaging with sophisticated software. It allows you to simultaneously see both the spectrophotometer entrance aperture and the sample. This makes it very easy to align the sample for measurements and to capture full color images under any measurement conditions.

Applications

  • Add spectroscopy to a microscope

  • Add thin film thickness measurements to a probe station

  • Upgrade an older microspectrophotometer

  • Colorimetry of LCD and OLED displays

  • Vitrinite reflectance of coal, coke and petroleum source rock

  • Biotechnology research

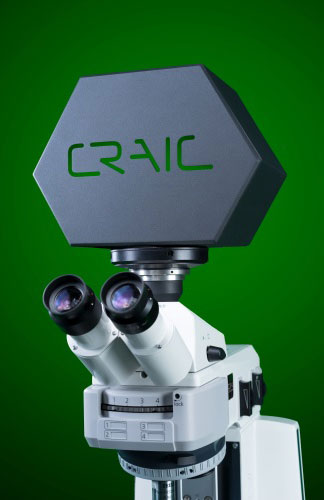

CRAIC Elixir Trace Evidence Solution

CRAIC Elixir™ is the multifunctional, yet cost effective solution for trace evidence analysis from CRAIC Technologies. This full-featured yet flexibly configured instrument offers the following capabilities:

Microspectroscopy, Raman microspectroscopy, Glass refractive index measurements, , High resolution color imaging, Polarization imaging and microspectroscopy, Fluorescence imaging and microspectroscopy

CRAIC Elixir™ incorporates superior optics, the highest quality spectrophotometers, high resolution digital imaging, and cutting edge software...all tied together with our Lightswitch by CRAIC™ optical multiplexer. With our Lightswitch by CRAIC™ proprietary technology, CRAIC Elixir™ retains the ease-of-use for which CRAIC instruments are known, while being capable of everything from UV-visible-NIR microspectroscopy, high resolution microscopic imaging, refractive index measurements and more.

With an attractive price-entry point, the CRAIC Elixir™ microspectrophotometer utilizes tested technologies to allow you to measure transmission, Raman, reflectance, polarization and fluorescence spectra of microscopic sample areas. And while microspectra™ are being acquired, the sample may be simultaneously imaged with a high-resolution color digital imaging system or through eyepieces. Additional features may also include measuring the refractive index of glass fragments as well as microcolorimetry.

The CRAIC Elixir™ is built to yield superior quality images and spectra by many different methods all for an attractive price.

Features

One instrument for glass, fibers, paints, soils and documents!


  • Transmission microspectroscopy

  • Reflectance microspectroscopy

  • Fluorescence microspectroscopy

  • Polarization microspectroscopy

  • Raman microspectroscopy

  • Sub-micron spectroscopy with permanently calibrated, variable apertures.

  • Sophisticated spectral analysis software

  • NIST Traceable Spectroscopy Standards

  • High resolution color imaging

  • High-resolution fluorescence imaging

  • High resolution polarization imaging

  • Sophisticated image analysis software

  • Superior images both with eyepieces and digital imaging

  • Easy to use and maintain

Microspectroscopy

From the leader in microspectroscopy...

A fully integrated microspectroscopy unit that features simultaneous and direct imaging of both the sampling aperture and the sample making for fast, accurate measurements of your trace evidence. The 508 PV™ microscope spectrophotometer gives you the ability to measure transmission, reflectance, polarization and fluorescence spectra of even sub-micron samples while also featuring high resolution color imaging.

CRAIC Technologies is also the only recognized source for NIST traceable microspectrophotometer standards.

Raman Microspectroscopy

Flexible Raman Microspectroscopy

Featuring the CRAIC Apollo™ Raman spectrometer modules allowing for Raman, resonance Raman and other types of measurements of microscopic samples. Modules include lasers, Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your trace evidence.

Glass Refractive Index

Sophisticated glass refractive index measurements...

CRAIC Elixir™ is offered with rIQ™, the intelligent solution for the measurement of the refactive index of glass. This advanced system offers automated measurements of the glass refractive index from multiple fragments simultaneously.

Imaging & Microscopy

Superior imaging quality...

CRAIC Elixir™ is offered with the high quality microscope optics and digital imaging. Combined with our sophisticated imaging software, you have the ability for both real time and image capture of samples by transmssion, reflectance, polarization and fluorescence microscopy quickly and easily.

Fluorescence

Sensitive fluorescence spectroscopy and imaging...

CRAIC Elixir™ can be configured to acquire the fluorescence spectra and images of even the smallest trace evidence samples. With multiple excitation wavelengths and sensitve detectors, the CRAIC Elixir™ makes fluorescence imaging and microspectroscopy simple, easy and accurate.

Polarization

Imaging and spectroscopy of multiple polarization states...

CRAIC Elixir™ can be configured to acquire the polarization spectra and images of even the smallest trace evidence samples. The spectra and images of birefringent samples can be acquired quickly and easily with this sophisticated system.

Applications

  • Trace Evidence including fibers, paints, glass and more.

  • Forensic Drug Chemistry

  • Explosives

  • Questioned Documents

Apollo Raman™ Microspectrometer

The CRAIC Apollo™ Raman spectrometer is designed for fast, easy micro-Raman spectroscopy so you can focus on sample measurements and results, not instrument setup. As such, it is perfect for routine research, quality control and failure analysis. The CRAIC Apollo™ Raman spectrometer employs optics, software and hardware all optimized for Raman spectroscopy of microscopic samples. The CRAIC Apollo™ Raman spectrometer is perfect for rapid, non-destructive analysis in fields such as life sciences, materials science, chemistry and physics.

The CRAIC Apollo™ Raman microspectrometer features a modular design. Each module includes laser excitation, optical interface, Raman spectrometer and software. Modules are offered with different lasers wavelengths and can be used together for the ultimate in experimental flexibility.

With an all solid state design, The CRAIC Apollo™ Raman microspectrometer is able to measure Raman scattering from microscopic samples quickly, easily and non-destructively. This Raman system is durable, easy to use, highly sensitive and economical to own and operate.

Features

The versatile CRAIC Apollo™ Raman microspectrometer designed for analytical labs.


  • Add to many types of optical microscopes

  • Use alone or on CRAIC UV-vis-NIR microspectrophotometers.

  • Modular system including laser, Raman spectrometer, imaging and microscope interface with optics

  • Stackable modules means that any three lasers may be used together

  • Laser wavelengths offered include 532, 638, 785, 830 nm and more

  • Integrated TE cooled CCD array detector for low noise and long term stabilityAll solid state Raman spectrometer for extreme durability

  • All solid state lasers for long lifetime and durability

  • Easy to use and maintain

  • From the experts in microspectroscopy

More Capabilities

More capabilities when combined with other CRAIC Instruments:

  • Thin film thickness measurements.

  • Refractive index measurements with the rIQ™ package

  • Colorimetry of microscopic samples

  • Traceable spectroscopy standards designed for microspectrophotometers

  • Manual or fully automated operation

  • Precision temperature control of samples

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the Raman spectra of samples may be generated.

Applications

  • Life Sciences

  • Flat Panel Displays

  • Semiconductor Metrology

  • Biotechnology Development

  • Process Impurity Detection

  • Biological Research

  • MEMS devices

  • WMD Detection

UVM-1 ™ Ultraviolet Microscope

The UVM-1™ is a UV microscope that also can image in the visible and NIR. This UV-visible-NIR microscope embodies both advanced optics for cutting edge UV, color and NIR imaging and visualization. The system is a flexible design, very easy to use and very durable. It is designed with cutting edge CRAIC optics for the highest image quality and to give years of service.

The UVM-1™ UV microscope can image in transmission, reflectance, polarization and even in fluorescence from the UV, visible, and NIR regions with high spatial resolution...all with the same microscope and without swapping components.

Features

The versatile CRAIC Apollo™ Raman microspectrometer designed for analytical labs.


  • Deep UV microscopy

  • Color microscopy

  • NIR microscopy...all with the same instrument and without changing optics!

  • Raman spectroscopy of microscopic samples.

  • Transmission, reflectance, fluorescence, and polarization imaging of microscopic samples...all with the same instrument

  • True high resolution digital imaging and direct visualization through eyepieces

  • Easy to use and maintain

More Capabilities

More capabilities when combined with other CRAIC Instruments:

  • Raman spectroscopy of microscopic samples.

  • UV-visible-NIR spectroscopy of microscopic samples

  • Hardware including automation and specialized analysis packages

  • Software including specialized data analysis, databasing and imaging.

Applications

  • Cellular structure analysis

  • Protein crystals

  • Plankton microspectroscopy

  • Tissue analysis

  • In vivo microspectroscopy

  • In vitro microspectroscopy

  • Kinetics spectroscopy

  • Combinatorial chemistry

  • Drug development

CRAIC MP-2 Microphotometer

The CRAIC MP-2™ Microscope Photometer is designed to add photometry and imaging to your optical microscope. Actually, the CRAIC MP-2™ is better described as a microscope radiometer in that it has a spectral range from the deep UV to the near infrared. It is limited only by the microscope itself.

The CRAIC MP-2™ microphotometer attaches to your microscope and enables you to collect transmission, reflectance or even fluorescence and luminescence photometric data of microscopic samples. The solid state detectors have dynamic ranges and sensitivities greater than PMTs or imaging systems. With complete software control, either broad- or narrow-band photometric intensity measurements can be made. Additionally, with the use of CRAIC reference materials, precise photometric intensities can be recorded relative to the reference material. With the CRAIC MP-2™ microphotometer, high quality photometry of even sub-micron samples can be done quickly, non-destructively and easily.

Features

Add transmission, reflectance and fluorescence photometry today.


  • Sensitive detector for low noise and long term stability

  • Total spectral range from deep UV to NIR with the specific range selected by the user

  • Rapid radiometric measurement capabilities

  • High dynamic range & high sensitivity

  • High spatial resolution & stray light resistance

  • Variable measurement areas down to sub-micron

  • Also incorporates high resolution digital imaging...up to 5 megapixels

More Capabilities

More capabilities when combined with other CRAIC Instruments:

  • Traceable spectroscopy standards designed for microspectrophotometers

  • Manual or fully automated operation

  • Precision temperature control of samples

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

Spectral Surface Mapping™

Combines hardware and software for automated spectral analysis and 3D mapping of samples with microscopic spatial resolution. 3D maps of the absorbance, transmission, reflectance, fluorescence, emission and Raman spectra of samples may be generated.

Applications

  • Immunohistochemistry

  • Cytophotometry

  • Immunofluorescence

  • Cytofluorimetry

  • Intracellular calcium measurements

  • DNA analysis

  • Thickness measurements

  • Ion and pH measurements

  • Mineralogy

  • Densitometry

  • Vitrinite reflectance

  • Photoreceptor analysis

  • Gemology

CoalPro III™ for Measuring Vitrinite Reflectance

The CoalPro III™ Optical Petrography System from CRAIC Technologies is a microphotometer designed for the organic petrographic analysis using Standard Test Methodologies ISO 7404-5 and ASTM D2798. This microphotometer is configured to measure the reflectance from coals, kerogens and petroleum source rock. However, it also has a very flexible design. The CoalPro III™ was developed anticipating the next generation of test protocols as well as for fluorescence and micro-imaging.

Incorporating a new optical detector and CRAIC CoalPro™ software, the CoalPro III™ system grades the energy content of coals, kerogens and petroleum source rock using the ISO 7404 and ASTM D2798 standard test methods. It also gives you the ability to collect full color images of each measurement location in addition to full automation if desired.

However, the CoalPro III™ can also be upgraded to a full 508 Coal™ microscope spectrophotometer to measure the full reflectance spectrum and the spectral fluorescence from coal, kerogen, petroleum source rock and other petrochemicals.

With no moving parts, the CoalPro III™ is durable and user friendly. Designed with flexibility and speed in mind, the CoalPro III™ system rapidly measures vitrinite reflectivity and also has the ability to do other types of spectroscopic and petrographic analysis and imaging. With this flexibility of design, it will easily comply with future changes in coal testing methods and your own experiments.

Features

Measure vitrinite reflectance of coal, kerogen and petroleum source rock quickly and easily.


  • High sensitivity detector with low noise and long term stability

  • CRAIC CoalPro™ software to calculate reflectance per ISO 7404 and ASTM D2798 standard test methods.

  • CRAIC Vitrinite Reference Materials available

  • Precision 546 nm reflectance measurements

  • Can be upgraded to full range microspectroscopy

  • Can be upgraded to fluorescence microspectroscopy

  • The only coal reflectance system that also incorporates color digital imaging.

  • Upgrade your old coal reflectance system with supported technology

  • Manual or fully automated operation

  • Precision temperature control of samples

  • Specialized software including statistical analysis, spectral databasing, image analysis and more

  • Easy to use and maintain

  • From the experts in microspectroscopy

Vitrinite Reflectance

ISO 7404 and ASTM D2798

The CoalPro III™ is designed to measure the reflectance of vitrinite macerals per ISO 7404 and ASTM D2798 standard methods. Offered both in manual and automated mode, the system produces industry standard reports when used with CRAIC Vitrinite Reflectance Standards. Test reports can also be customized to your particular requirements.

Fluorescence

Cutting edge microfluorometry

The CoalPro III™ can also measure the fluorescence intensity of coals, kerogens and petroleum source rock easily and quickly. With the ability to image and measure the emission intensity, the CoalPro III™ is a powerful tool for spectral analysis of geological samples...including fluid inclusions.

Microimaging

High resolution color digital imaging

The CoalPro III™ offers high resolution, color digital imaging with sophisticated software. It allows you to simultaneously see both the spectrophotometer entrance aperture and the coal sample. This makes it very easy to align the sample for measurements and to capture full color images under any measurement conditions.

Applications

  • Vitrinite Coal Reflectometry

  • Organic Petrography

  • Kerogen Analysis

  • Petroleum Source Rock Analysis

  • Petrochemistry

  • Reflectance microspectroscopy

  • Transmission microspectroscopy

  • Fluorescence microspectroscopy

  • Color imaging

  • Mineralogy analysis

  • Gemology

rIQ™ Refractive Index Quantification™

rIQ™ is designed to measure and quantify the refractive index of microscopic fragments of glass. rIQ™ stands for Refractive Index Quantification and is built based upon the thermo-optical methodology defined by ASTM E1967. As such, it is an automated system which measures the refractive index of microscopic glass fragments by monitoring the change in refractive index of calibrated oils as they are heated and cooled.

rIQ™: the smart choice for measuring the refractive index of glass.

Features

The Intelligent solution for glass refractive index measurement.


  • Automatic measurement of refractive index per ASTM and SWGMAT standards

  • Sophisticated algorithms for high precision glass refractive index measurement

  • Exceeds ASTM requirements for long term stability and reproducibility

  • Up to 20 measurement probes

  • Video recording of measurement procedure

  • When added to CRAIC microspectrometers, transmission, fluorescence and color spectra of glass fragments can also be measured.

  • Simple system calibration with glass standard reference materials

  • Long term system and environmental conditions are monitored and stored.

  • Precision temperature control

  • Automatic statistical analysis

  • Data is stored in database and includes refractive index data, sample identification and description, environmental conditions and more.

  • Intuitive user interface

  • Offered as a turnkey standalone package, as an add-on package to CRAIC microspectrophotometers and as an upgrade to older RI measurement systems already in the field.

  • Easy to use and maintain

Hardware

Precision and quality

rIQ™ is an automated system that uses the thermal immersion method, as defined by the standard ASTM E1967-98, for glass refractive index measurement. The system, which incorporates many years of experience with the analysis of glass, allows the user to analyze the refractive index of multiple glass fragments simultaneously and with sophisticated analytical techniques.

Depending upon your requirements, the hardware includes high resolution digital imaging, precision thermal control, a phase contrast microscope and the controlling electronics.

Software

Sophisticated algorithms

rIQ™ software is designed to be intuitive yet also incorporates powerful algorithms to determine the refractive index of glass with the highest precision. The rIQ™ system also features environmental monitoring, including ambient temperature and control, as well as advanced databasing and statistical analysis capabilities. Designed to be intuitive and easy-to-use, it is also flexible and offers many additional capabilities such as the ability to customize reports.

CONTACTO

Si tienes dudas, déjanos tu información y nos pondremos en contacto

TELÉFONOS DE CONTACTO

(55) 5760-9404 y (55) 2603-1911

EMAIL

innovain@prodigy.net.mx

INNOVA Investigación S.A de C.V. 2017

Todos los derechos reservados
